X-MAXX Detail
X-MAXX Data
Truck Spec
Length:30.67 inches (779 mm)
Front Track:21.3 inches (540 mm)
Rear Track:21.3 inches (540 mm)
Ground Clearance:4 inches (102 mm)
Weight:19.1 pounds (8.66 kg)
Height (ride):13.79 inches (350 mm)
Wheelbase:18.92 inches (480 mm)

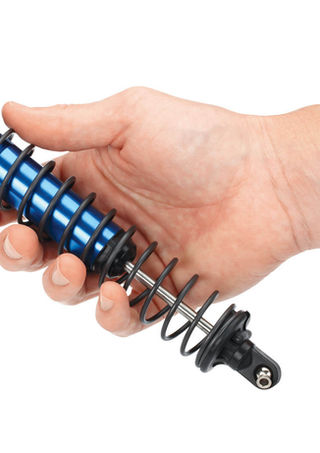

Shock Length:7.4 inches (187 mm)
Tires (pre-glued):8.0x4.0 inches (203 mm)
Wheels:4.3x5.7 inches (110x145 mm)
Wheel Hex Size:24 mm splined hex
Speed Control:Velineon VXL-8s®
Motor (electric):Velineon 1200XL
Transmission:Single-speed
Overall Drive Ratio:8.11 (stock, out-of-box)
Differential Type:Sealed, hardened steel bevel, limited slip
Gear Pitch:1.0 pitch
Chassis Structure/Material:Composite Nylon tub
Brake Type:Electronic
Drive System:Shaft-driven 4WD
Steering:Bellcrank
Radio System:TQi™ 2.4 GHz Transmitter with TSM receiver®
Servo:Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V)
Top Speed:50+ MPH with two 4s LiPo batteries and optional gearing
Skill Level:6
Battery Tray:197 mm x 51.5 mm x 44 mm
Required Batteries:4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)
Moter Spec
Type:1275 kv Sensorless Brushless
Weight:665g (23.44oz)
Length:4.32 inches (110mm)
Diameter:1.88 inches (48mm)
Connector Type:Traxxas 6.5mm Bullet Connectors
ESC Spec
Input Voltage:8s LiPo (Max 33.6 Volts)
Case Size:2.23in (58mm) / 2.83in (72mm) / 1.81in (46mm)
Weight:215.5g (7.60oz)
BEC Voltage:6.0 V
BEC Current Continuous:10 A
BEC Current Peak:20 A
Motor Connectors:Traxxas 6.5mm Bullet Connectors
Battery Connectors:Traxxas High-Current Connectors
Power Wire:10-gauge Maxx Cable
Ports:RX Input, Auxiliary Fan, Traxxas Accessory Port
