Model No CB88096-4

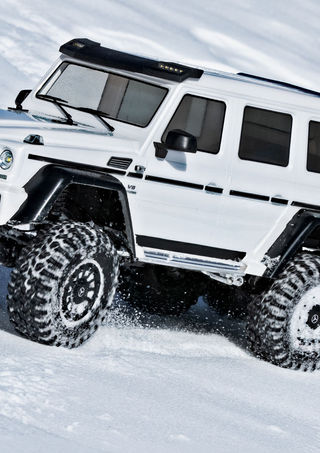

メルセデス・ベンツ G 63 AMG 6x6 は、これまでで最も大胆でタフな全地形対応車を作るという独自のビジョンを体現しています。


メルセデス・ベンツ® G 63AMG 6x6 と公式にライセンスされた詳細なスケールのレプリカは、新しいTRX-6®プラットホーム。

6つの駆動輪、3つのT-ロック™ リモートロック式ディファレンシャル、ポータルアクスル、ハイ/ロートランスミッション、6つのアルミニウム製ロングトラベルショック、鮮やかなLED照明を備えた驚くほど正確なボディにより、これまでトレイルを走破した中で最も先進的で高性能なRCクローラーとなっています

TRX-6 G63 AMG Detail

TRX-6 G63 AMG Date

Vehicle Specs


Length:25.61 inches (651 mm)

Front Track:9.78 inches (249 mm)

Rear Track:9.78 inches (249 mm)

Ground Clearance:3.14 inches (80 mm)

Weight:8.8 pounds (3.99 kg)

Height:10.78 inches (274 mm)

Wheelbase (to intermediate axle):12.76 inches (324 mm)

Wheelbase (to rear axle):17.87 inches (454 mm)

Approach Angle:60°

Departure Angle:55°

Breakover Angle:57°

Front Shock Length:3.54 inches (90 mm)

Rear Shock Length:3.54 inches (90 mm)

Battery Tray:158.75 L x 47 W x 23/26 mm H

Front Wheels:2.2 x 1.02 inches (56 x 26 mm)

Rear Wheels:2.2 x 1.02 inches (56 x 26 mm)

Front Tires:4.64 x 1.89 inches (118 x 48 mm)

Rear Tires:4.64 x 1.89 inches (118 x 48 mm)

Hex Size:12 mm

Speed Control:XL-5™ HV

Motor (electric):Titan 21T reverse rotation®

Transmission:2-speed high/low, remote shifting

Gear Pitch:32 pitch

Differential Type:4 gear, remote locking

Chassis Structure / Material:Steel ladder frame with Nylon composite crossmembers

Brake Type:Electronic “Hill Hold”

Drive System:Shaft-driven 6WD

Steering:Chassis mounted servo

Servo:2075X metal gear

Transmitter:TQi™ 2.4 GHz 4-channel transmitter


Motor Specs


Type:High-torque brushed motor


Weight:13.76 ounces (390 g)

Length:3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (38.9 mm diameter)

Turns:21T reverse rotation

Voltage:16.8 volts

ESC Specs


Input Voltage:6–7 cells NiMH, 2–3s LiPo

Case Size:1.23″ W x 2.18″ D x 1.04″ H

Weight:2.6 ounces (74 g)

Motor Limit:21-turns (550 size)

On Resistance Forward:0.004 ohms

On Resistance Reverse:0.004 ohms

Peak Current - Forward:100 amps

Peak Current - Reverse:100 amps

Braking Current:60 amps

Continuous Current:18 amps

BEC Voltage:6.0 volts

BEC Current:1 amp

Power Wire:14 gauge / 5″

Input Harness Wire:26 gauge / 14.5″

Transistor Type:MOSFET

PWM Frequency:1700 Hz

Low Voltage Detection (LVD):2-stage indicators, switchable (on or off)

Thermal Protection:Thermal shutdown

Profile selection:

  • Sport Mode: 100% FWD, 100% brakes, 100% REV

  • Race Mode: 100% FWD, 100% brakes, no REV

  • Training Mode:* 50% FWD, 100% brakes, 50% REV

  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral

  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

Single-button setup:Traxxas EZ-Set®
