Model No CB78086-4

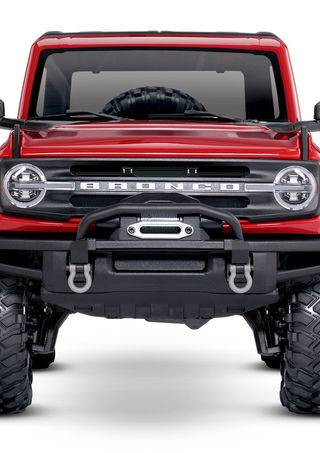

​New Bronco Detail

Bronco Date

Vehicle Specs


Length (overall):22.98 inches (584 mm)

Length (chassis):21.59 inches (549 mm)

Front Track:9.78 inches (249 mm)

Rear Track:9.78 inches (249 mm)

Ground Clearance:3.14 inches (80 mm)

Weight:6.42 pounds (2.91 kg)

Height:9.4 inches (239 mm)

Wheelbase:12.8 inches (324 mm)

Front Shock Length:3.54 inches (90 mm)

Rear Shock Length:3.54 inches (90 mm)

Front Wheels:1.9″ x 1.02″ (49 x 26 mm)

Rear Wheels:1.9″ x 1.02″ (49 x 26 mm)

Front Tires:4.64″ x 1.89″ inches (118 x 48 mm)

Rear Tires:4.64″ x 1.89″ (118 x 48 mm)

Approach Angle:52°

Departure Angle:49°

Breakover Angle:58°

Hex Size:12 mm

Speed Control:XL-5™ HV

Motor (electric):21T reverse rotation

Transmission:2-speed high/low, remote shifting

Gear Pitch:32 pitch

Differential Type:4 gear, remote locking

Chassis Structure / Material:Steel ladder frame with Nylon composite crossmembers

Brake Type:Electronic “Hill Hold”

Drive System:Shaft driven 4WD

Steering:Chassis mounted servo

Servo:2075X metal gear

Transmitter:TQi™ 2.4 GHz 4-channel transmitter


Skill Level:1

Battery Tray:159 L x 47 W x 23/26 mm H

Motor Specs

Type:High-torque brushed motor


Weight:13.76 ounces (390 g)

Length:3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter)

Turns:21T reverse rotation

Voltage:16.8 volts

ESC Specs

Input Voltage:6–7 Cells NiMH, 2–3s LiPo

Case Size:1.23″ W x 2.18″ D x 1.04″ H

Weight:2.6 ounces (74 g)

Motor Limit:21-turns (550 size)

On Resistance Forward:0.004 ohms

On Resistance Reverse:0.004 ohms

Peak Current - Forward:100 amps

Peak Current - Reverse:100 amps

Braking Current:60 amps

Continuous Current:18 amps

BEC Voltage:6.0 volts

BEC Current:1 amp

Power Wire:14 gauge / 5″

Input Harness Wire:26 gauge / 14.5″

Transistor Type:MOSFET

PWM Frequency:1700 Hz

Low Voltage Detection (LVD):2-stage indicators, switchable (on or off)

Thermal Protection:Thermal shutdown

Profile selection:

  • Sport Mode: 100% FWD, 100% brakes, 100% REV

  • Race Mode: 100% FWD, 100% brakes, no REV

  • Training Mode:* 50% FWD, 100% brakes, 50% REV

  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral

  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

Single-button setup:Traxxas EZ-Set®

* Patented
